The machine adopts large-span bridge structure. Cross beam and side beams are oil-immersed guide rails. The machine can slice and move automatically by lead-screw driving, and achieve quick blade rising, or slowdown of blade slicing (special-customized frequency control of motor speed is available too). And there are protectors in cross beam and side beams to limit their movement beyond your requirement. The block can be placed on the ground directly, which saves the worktable costs and its repa

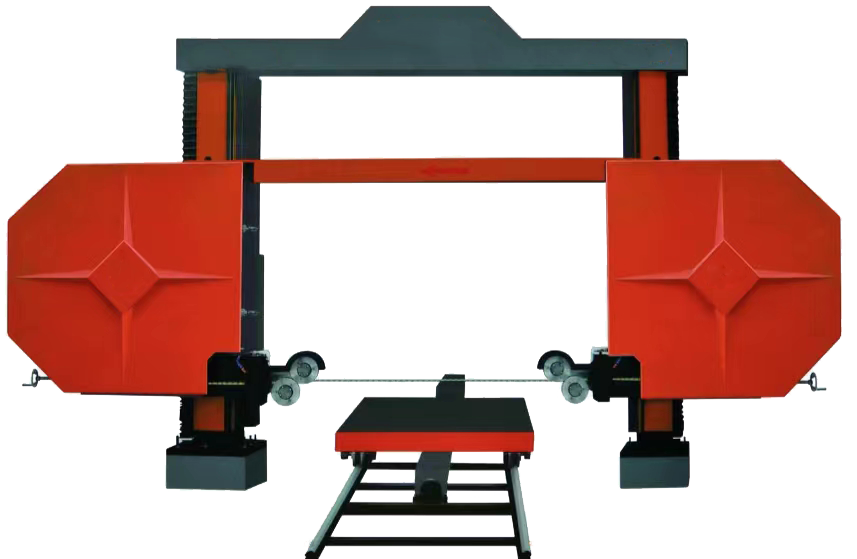

CNC Wire Saw Machine

TYPE

Unit

SZ-2000

SZ-2500

SZ-3000

Beaded rope diameter

Mm

Φ7.6-Φ11.8

Φ7.6-Φ11.8

Φ7.6-Φ11.8

Beaded string length

Mm

14500

15700

16500

Max working dimensions(LxWxH)

Mm

2500X2000X1500

2500X2500X1500

2500X3000X1500

Table size(LxW)

Mm

2500X1300

2500X1300

2500X1300

Main motor power

Kw

7.5

7.5

11

Gross power

Kw

15

15

17.5

Water consumption

M3/h

5

5

5

Dimension(L x W x H)

Mm

6700X5350X4200

6700X5850X4200

6700X6350X4200

The total weight

Kg

4900

5000

5100

technical parameters
