Three-D motion is controlled by computer to operate automatically . All parts adopt high quality steel . The electric controlled part uses advanced import components . The side beam puts protector and touching system . Thus the whole machine is featured as good performance and convenient operating . It is special suit for cutting granite and marble with high value and big size.

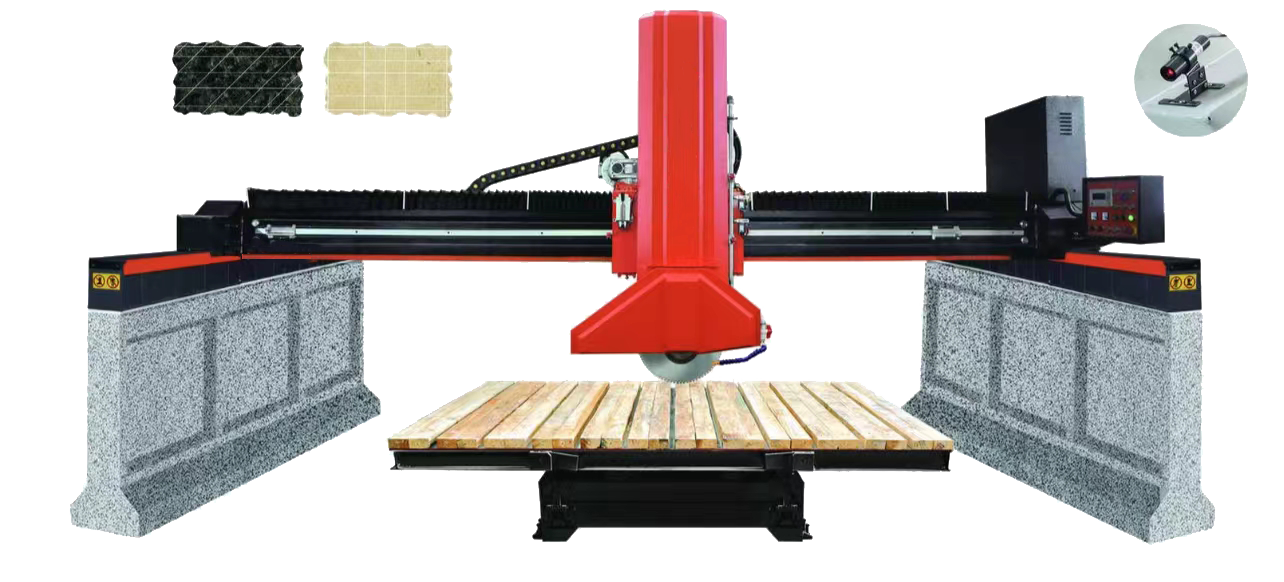

Infrared Bridge Stone Cutter Machine

TYPE

Unit

SZ-400

SZ-600

SZ-700

Blade diameter

Mm

350-450

400-600

400-700

Max working dimensions(LxWxH)

Mm

3200X2000X180

3200X2000X190

3200X2000X240

Workbench tilting degree

0°-85°

0°-85°

0°-85°

Workbench rotating degree

0°-90°

0°-90°

0°-90°

Main motor power

Kw

15

18.5

18.5

Weight

Kg

6400

6600

7000

Dimension(L x W x H)

Mm

6000X4700X3100

6000X4700X3100

6000X4700X3300

technical parameters
