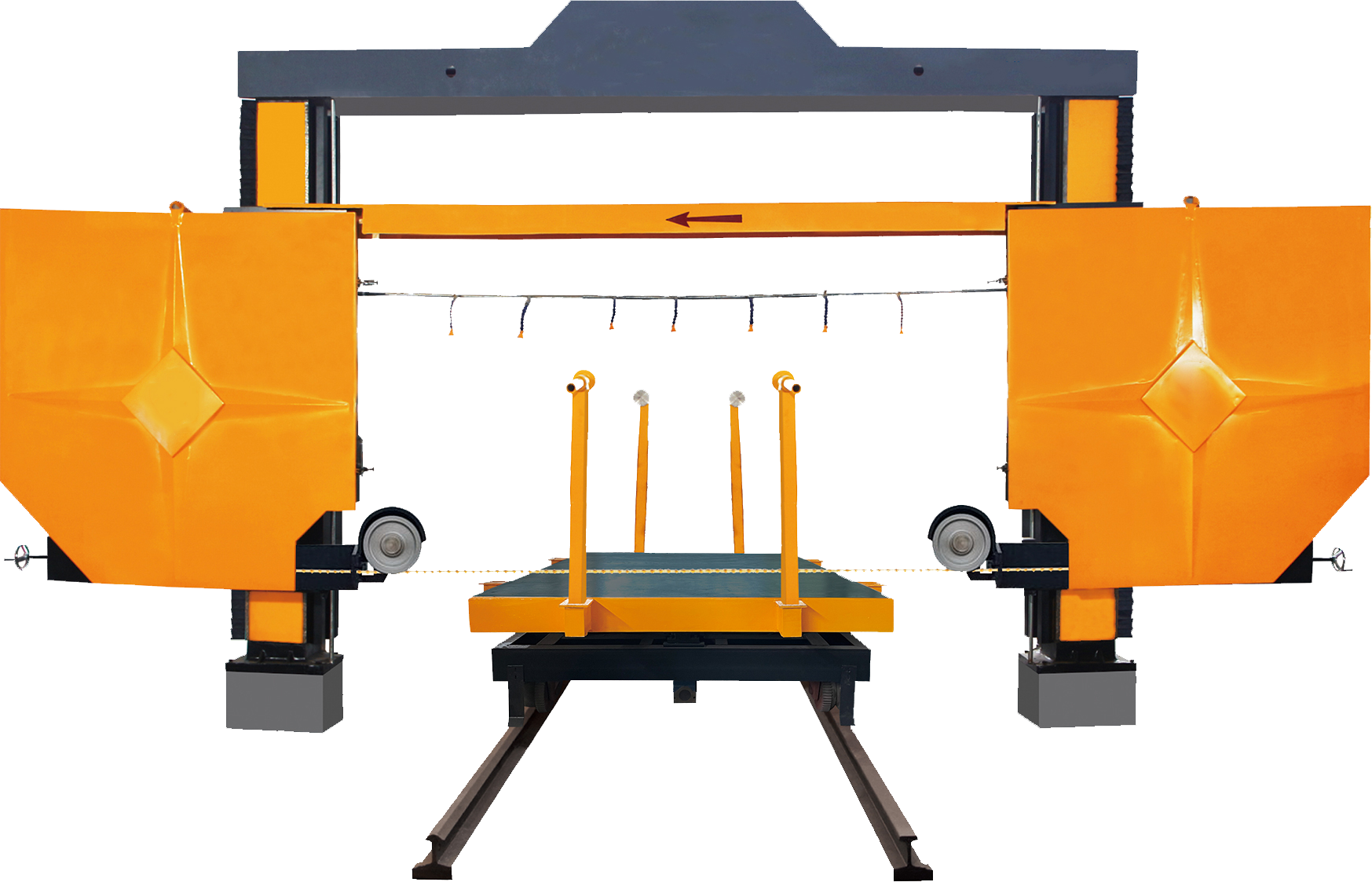

Block dressing machine adopts PLC control, lifting structure use 16 surfaces slideway. 28pcs rolling wheels structure. And synchronous lifting through intermediate drive makes its cutting stable, high efficiency. it can dress four surface of block as worktable with 360° rotating.
It's the ideal equipment for block cutting to slice and block dressing.
It's the ideal equipment for block cutting to slice and block dressing.
Block Dressing Machine
|
TYPE |
Unit |
SZ-3000-15 |
SZ-3500-18 |
SZ-3500-21 |
|
Wheel diameter |
Mm |
1600 |
1900 |
2200 |
|
Max working dimensions(LxWxH) |
Mm |
3000X3000X1500 |
3500X3000X1800 |
3500X3500X2100 |
|
Trolley size |
Mm |
1600X2000 |
1800X2000 |
2000X2500 |
|
Table bearing weight |
T |
20 |
35 |
50 |
|
Main motor power |
Kw |
11 |
11 |
15 |
|
Weight |
Kg |
6400 |
6600 |
7000 |
|
Dimension(L x W x H) |
Mm |
8800X5500X4100 |
9300X5900X4800 |
9800X6800X5600 |
|
Water consumption |
M3/h |
5 |
6 |
6 |
|
Wire speed |
M/s |
0-40 |
0-40 |
0-40 |
